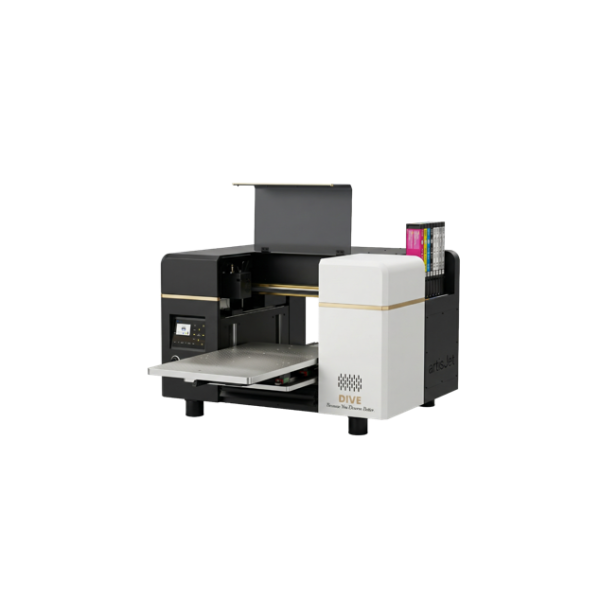

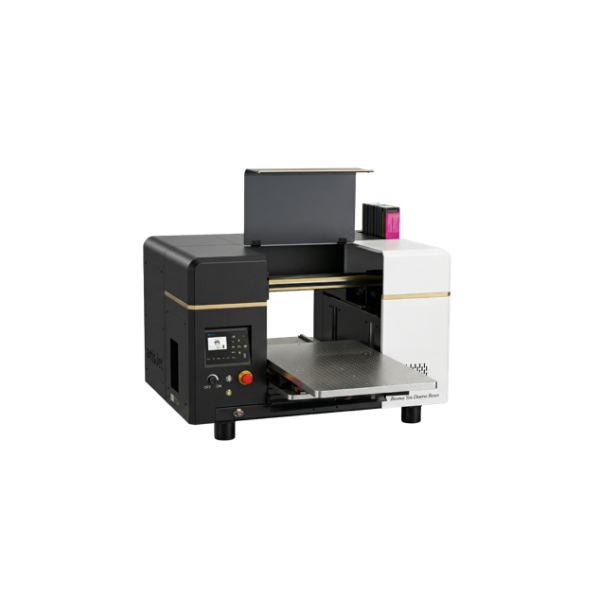

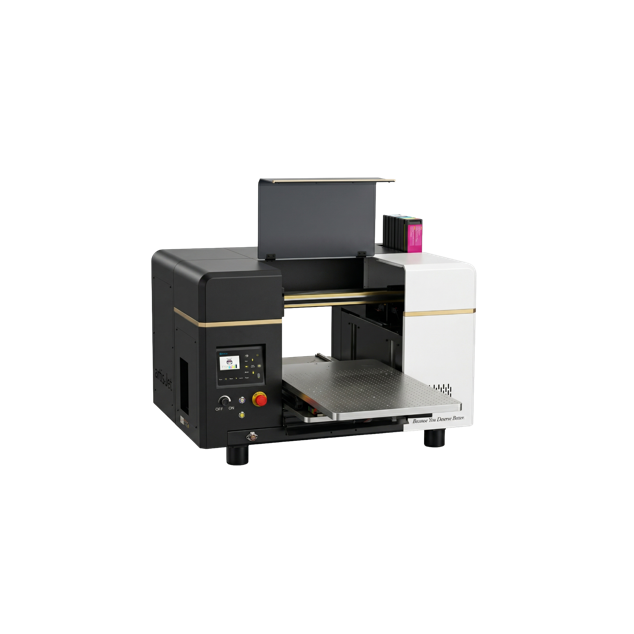

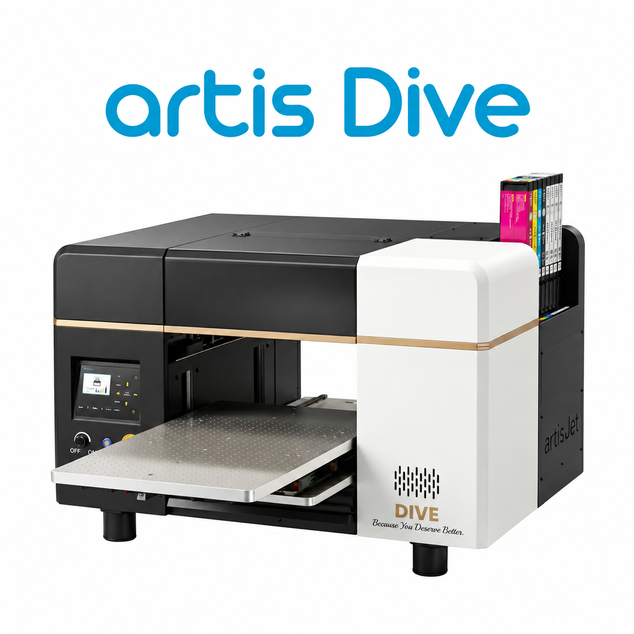

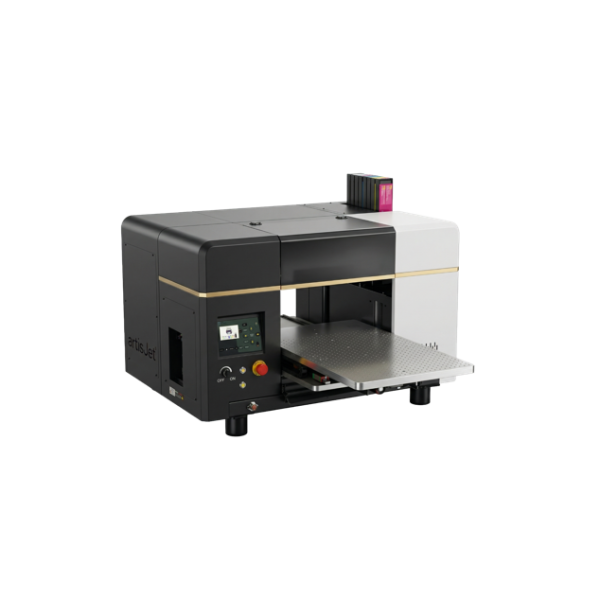

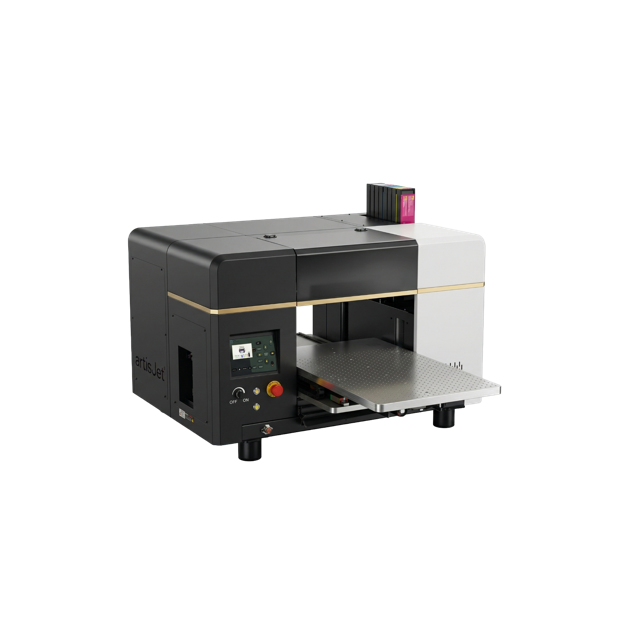

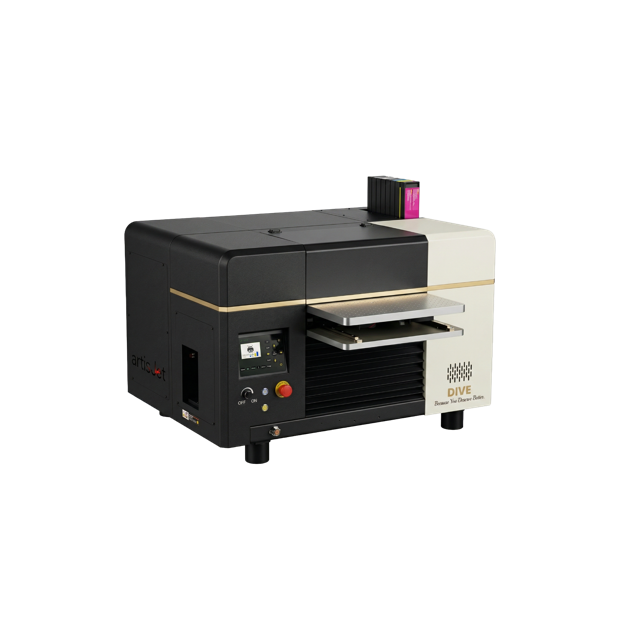

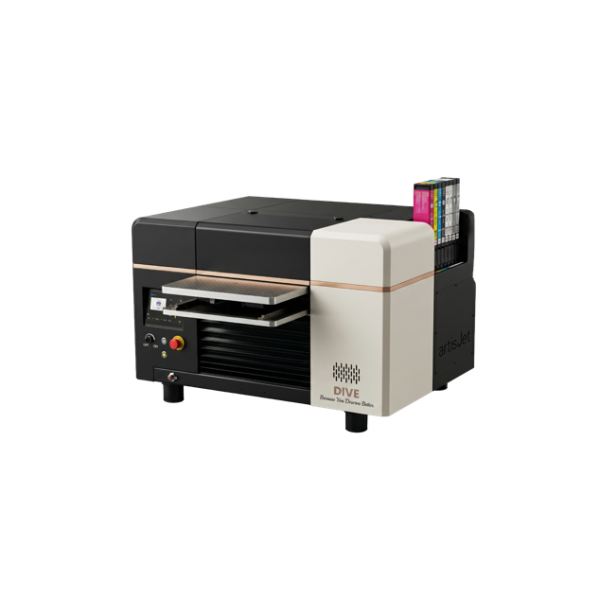

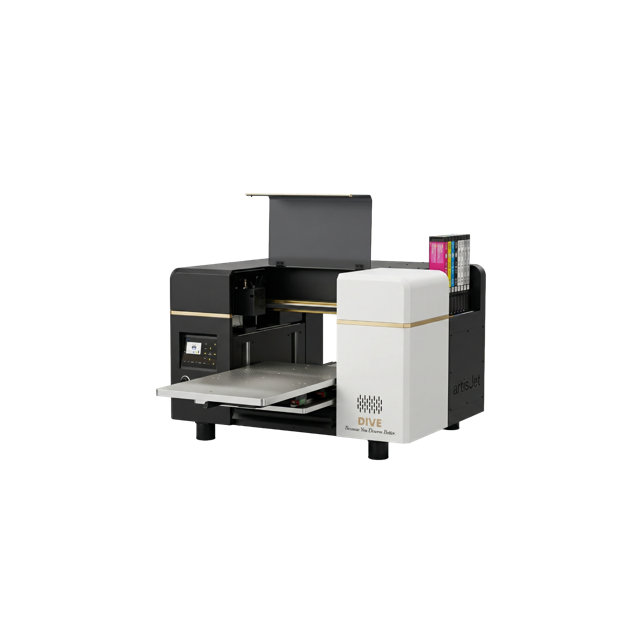

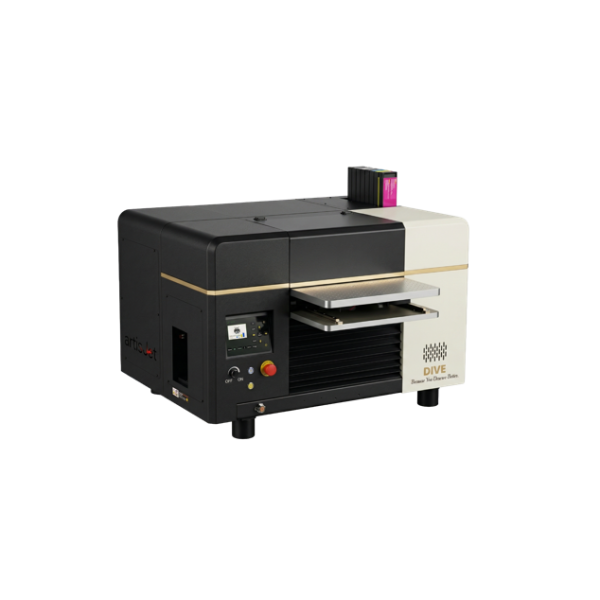

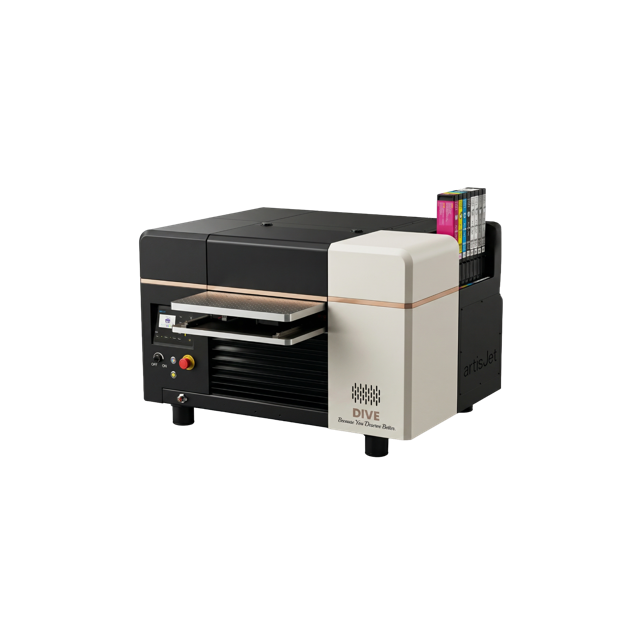

artisJet DIVE

artisJet DIVE — UV LED printer for personalising objects and materials with colour, white, varnish and embossed textures.

  • Print area: 46 × 61 cm
  • Maximum object height: 20 cm
  • Epson i3200 · 1800 dpi
  • Rotary attachment: optional
Category:

Description

artisJet DIVE · UV LED

More room for your ideas

Personalise objects and surfaces with colour, white, varnish and raised textures. A professional printer for creative projects.

Request information

artisJet DIVE
46 × 61 cm
Print area
20 cm
Maximum object height
1800 dpi
Maximum resolution
8 channels
Colour, white and varnish

Capacity and versatility

A large table for different projects

A 46 × 61 cm print area and up to 20 cm height for individual objects, batches and creative applications.

artisJet DIVE

Ready for flat items and larger objects

DIVE prints on acrylic, glass, wood, metal, leather, plastic, paper and cardboard. Automatic height detection helps prepare each job.

With the optional rotary attachment, personalise cylindrical objects from 1.5 to 22.5 cm in diameter.

Find the right configuration ›

Finishes that make a difference

Colour, texture and detail

01

White and colour

Personalise a range of materials with ink configurations suited to each job.

02

Raised effects and braille

Add texture and create accessible signage applications.

03

Spot varnish

Create gloss or matte details and simulate a metallic gold finish.

04

Sandwich printing

Print three layers on transparent substrates in a single process.

Inspiration for your projects

From signage to personalised gifts

UV rotary applications

Objects with a story

Bottles, corporate gifts, trophies and event items. Rotary attachment optional.

UV braille signage

Raised signage

Create signs, plaques and tactile applications combining colour and texture.

Technical information

Designed to work with precision

Epson i3200 printhead, continuous ink supply and white ink circulation.

Download datasheet (Spanish)

Print area 46 × 61 cm · Depending on software: 45 × 60 cm
Maximum height 20 cm
Printhead / resolution Epson i3200 · 1800 dpi
Inks UV LED DTSAT3 FREEBIRD · 8 channels
Connection / system USB 2.0 / 3.0 · Windows
Dimensions (depth × width × height) 105 × 110 × 72,5 cm
Operating temperature 20–32 °C
Compatible RIP software CADLink, Flexi, WhiteRIP, artisJet RIP
Anti-static module Optional
Controlled start-up Quick, simple and safe start-up and shutdown

Approximate print times · 46 × 61 cm area

Resolution WW/KCMY WW + KCMY
720 × 1200 dpi 5 min 17 s 10 min 21 s
720 × 1800 dpi 7 min 23 s 15 min 17 s

Approximate times may vary depending on the job and settings.

Discover what you can create with DIVE

Our team can help you choose the right configuration.
